| Tên thương hiệu: | ECHU or OEM |

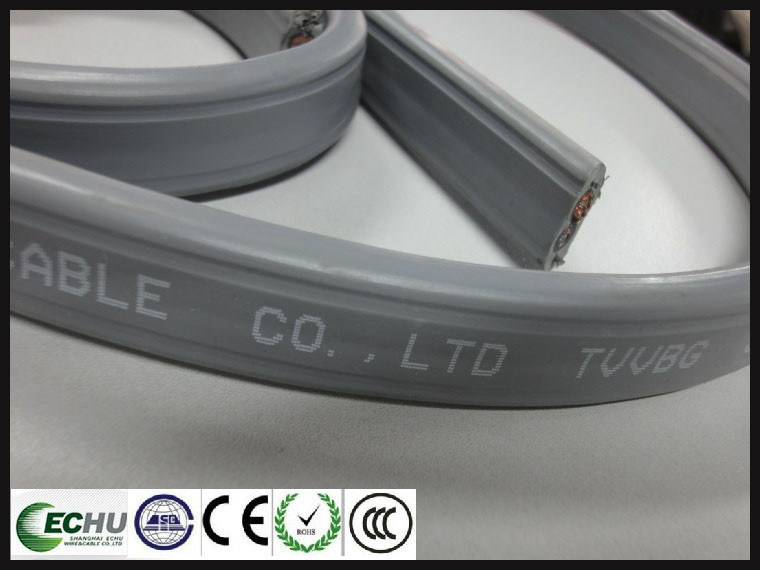

| Số mô hình: | TVVBG-TV |
| MOQ: | 300m |
| giá bán: | Depends on qualtity |
| Điều khoản thanh toán: | T/T, Western Union, L/C |
| Khả năng cung cấp: | 100000 km/tuần |

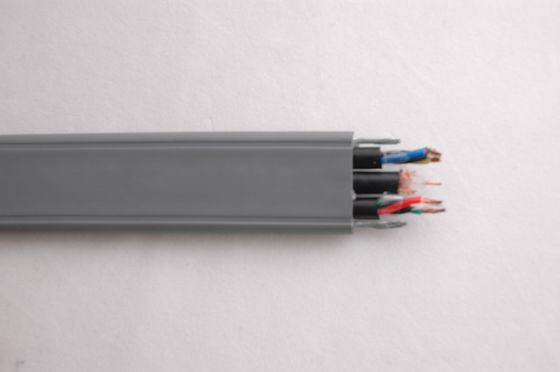

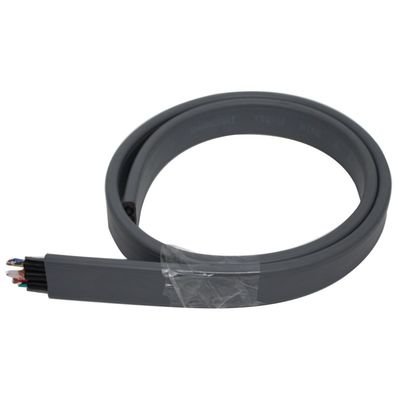

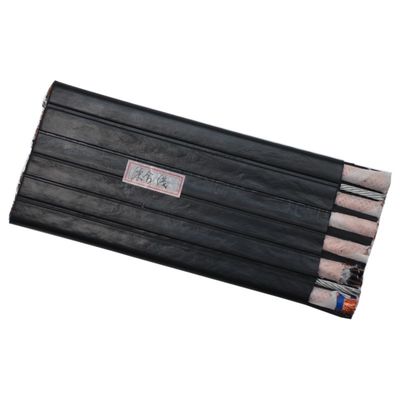

Flat Elevator Cable with Communication Cable
Flat Travel Cable with Video Cable CCTV Cable for Elevator
PRODUCT STANDARD
GB5023.6-1997
PRODUCTION APPLICATION
Elevator suspension flat travel cable for internal and panoramic elevators.
RATED VOLTAGE
This product is fit for the rated 300/500V and below.
WORK TEMPERATURE:
Used under the normal conditions, the conductor' s temperature is at 70. The cable is available at -15 to 40 environment.
OTHER ATTENTIONS
Without steelFree suspension length not exceed 80 meters, and the lift speed must not exceed 4m/s.

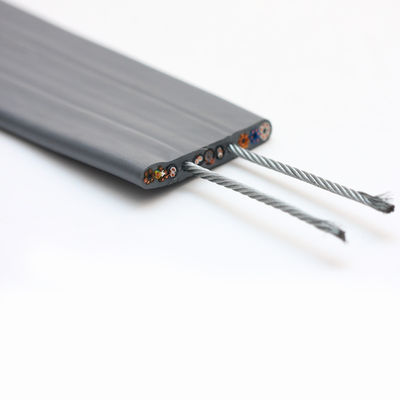

With steelFree suspension length exceed 80 meters, and the lift speed must not exceed 10m/s.
Flat traveling cable with 75ohm cable
Flat traveling cable with video cable
| Type | Specification | Outside Diameter(mm) |
| TVVB2G | 75-5+2X1.0 | 22.9±1.0×9.3±0.5 |
| TVVB2G | 75-5+2X0.75 | 22.9±1.0×9.3±0.5 |
| TVVB1G | 75-3+2X0.75 | 17.0±1.0×6.5±0.5 |
| TVVB2G | SYV75-5-2 | 13.3±1.0×7.1±0.5 |
| SYV2G | 75-5-2 | 8.1±0.5×3.7±0.2 |
We also can design according to your requirement
