| Tên thương hiệu: | ECHU |
| Số mô hình: | UL1061 |
| MOQ: | 305m |
| giá bán: | USD0.0382-USD0.967/M |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 100000 km/tuần |

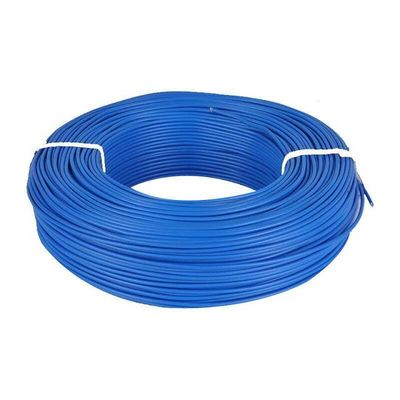

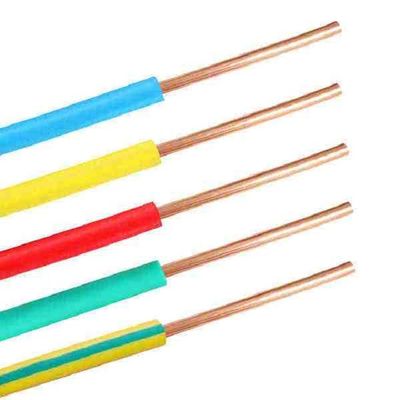

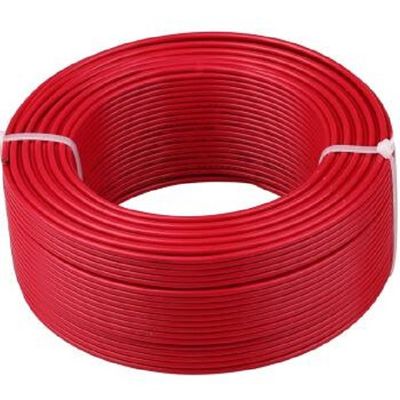

UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light
Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible
This type of cable have the advantage of the cable have smaller outside diameter, can meet higher using requirement.
| Conductor | Insulation | Maximum Resistance at 20ºC Ω/km |
|||
| AWG | No./mm | Dia. mm |
Nom. Thick. mm |
Nom.Dia. mm |
|
| 30 | 7/0.1 | 0.30 | 0.26 | 0.82 | 354 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 223 |
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 139 |
| 24 | 11/0.16 | 0.61 | 0.27 | 1.15 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.26 | 1.28 | 57.5 |
| 20 | 26/0.16 | 0.94 | 0.26 | 1.46 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.26 | 1.70 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.26 | 2.02 | 15.1 |
