| Tên thương hiệu: | ECHU |
| Số mô hình: | EKF200 00 |
| MOQ: | 300m |
| giá bán: | USD0.103-USD3.115/M |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 100000 km/tuần |

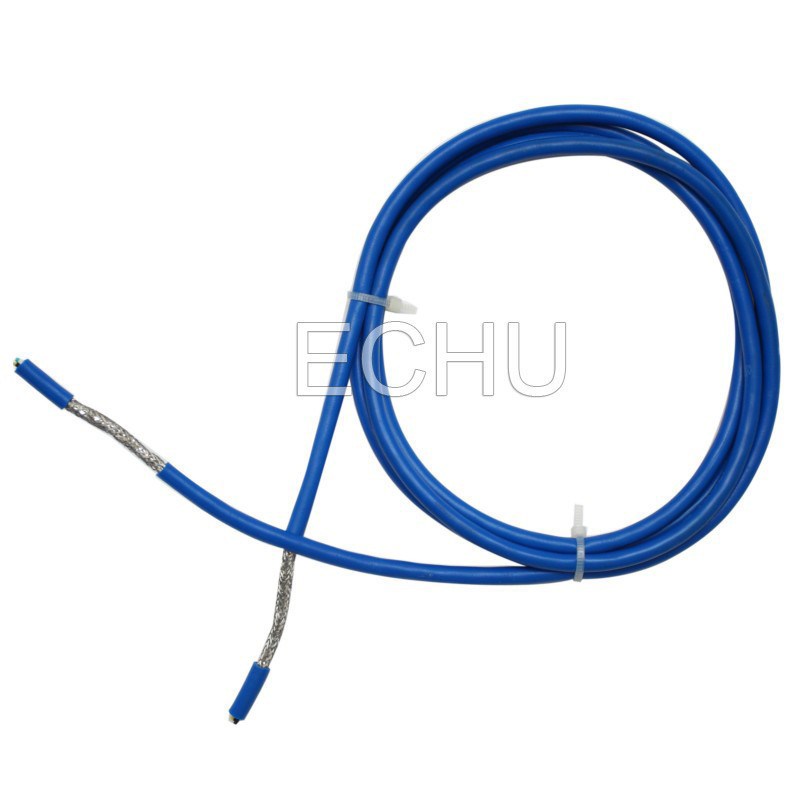

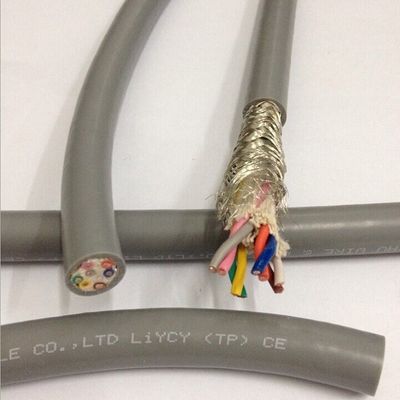

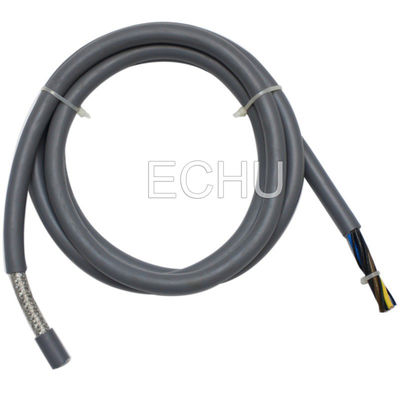

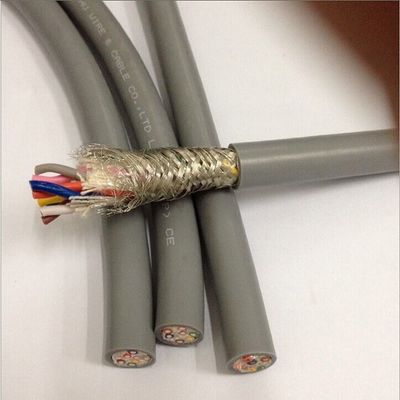

Round Control Cable
Applications:
Working as connecting and control cable under dry or wet indoor stituation, especially for kinds of electronic installation of industrial condition. The cable Cross section area 0.5sqmm or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belching and air conditionor installation, For its special flexibility, it could also work in installation or fixation.
Properties:
For PVC's high mechanical property, excellent insulation, good chemistry stability, water resistance, Coloured core identification cable has more excellenct capability and safety service.
Structure:
Conductor: Copper acc. VDE0295 CLASS 5
Insulation: Special PVC
Color: <0.5mm Color signed acc. to DIN47100
>0.5mm Black number with white series number, if more than 3 cores will have yellow and green earth wire
Inner Liner: PP or non-woven for buffer
Sheath: PVC 70C sheath, Black(RAL9005) or Grey (RAL7001), or other colors
Standard: JB8734.4-1998, GB5023.5-2008
Technical Data:
Minimum bending diameter:
Fixed installation: 15Xouter diameter
Flexing Installation: 6xouter diameter
Temperature range:
Flexing Installation: -10C to +70C
Fixed Installation: -30C to +70C
Test voltage: <0.5mm: 2000V ; >0.5mm 2500V
Working Voltage: <0.5mm 300/300V, >0.5mm 300/500V
Optioanl: Flat Cable
| Type | Pairs | Specification | Conductor No. | Conductor Dia | Weight KG/KM | O.D. |
| LIYCY(TP) | 2 | 0.34*2C | 7 | 0.25 | 53.8 | 7 |
| LIYCY(TP) | 3 | 0.34*2C | 7 | 0.25 | 66.8 | 7.3 |
| LIYCY(TP) | 4 | 0.34*2C | 7 | 0.25 | 85 | 8.1 |
| LIYCY(TP) | 5 | 0.34*2C | 7 | 0.25 | 99.9 | 8.8 |
| LIYCY(TP) | 6 | 0.34*2C | 7 | 0.25 | 119.6 | 9.7 |
| LIYCY(TP) | 7 | 0.34*2C | 7 | 0.25 | 130.8 | 9.7 |
| LIYCY(TP) | 8 | 0.34*2C | 7 | 0.25 | 151.3 | 10.6 |
| LIYCY(TP) | 9 | 0.34*2C | 7 | 0.25 | 168.6 | 11.5 |
| LIYCY(TP) | 10 | 0.34*2C | 7 | 0.25 | 190.2 | 12.4 |
| LIYCY(TP) | 11 | 0.34*2C | 7 | 0.25 | 203.9 | 12.7 |
| LIYCY(TP) | 12 | 0.34*2C | 7 | 0.25 | 215.2 | 12.7 |
| LIYCY(TP) | 13 | 0.34*2C | 7 | 0.25 | 237.6 | 13.6 |
| LIYCY(TP) | 14 | 0.34*2C | 7 | 0.25 | 248.8 | 13.6 |
| LIYCY(TP) | 15 | 0.34*2C | 7 | 0.25 | 265 | 14.3 |
| LIYCY(TP) | 16 | 0.34*2C | 7 | 0.25 | 276.2 | 14.3 |
| LIYCY(TP) | 17 | 0.34*2C | 7 | 0.25 | 299.8 | 15.2 |
| LIYCY(TP) | 18 | 0.34*2C | 7 | 0.25 | 311 | 15.2 |
| LIYCY(TP) | 19 | 0.34*2C | 7 | 0.25 | 322.2 | 15.2 |
| LIYCY(TP) | 20 | 0.34*2C | 7 | 0.25 | 336.3 | 15.5 |
| LIYCY(TP) | 21 | 0.34*2C | 7 | 0.25 | 350.2 | 15.8 |
| LIYCY(TP) | 22 | 0.34*2C | 7 | 0.25 | 376.8 | 17 |
| LIYCY(TP) | 23 | 0.34*2C | 7 | 0.25 | 402.4 | 17.9 |
| LIYCY(TP) | 24 | 0.34*2C | 7 | 0.25 | 413.6 | 17.9 |
| LIYCY(TP) | 25 | 0.34*2C | 7 | 0.25 | 428 | 18.2 |
| LIYCY(TP) | 26 | 0.34*2C | 7 | 0.25 | 439.2 | 18.2 |
| LIYCY(TP) | 27 | 0.34*2C | 7 | 0.25 | 450.4 | 18.2 |
| LIYCY(TP) | 28 | 0.34*2C | 7 | 0.25 | 467 | 18.8 |
| LIYCY(TP) | 29 | 0.34*2C | 7 | 0.25 | 478.2 | 18.8 |
| LIYCY(TP) | 30 | 0.34*2C | 7 | 0.25 | 489.4 | 18.8 |
| LIYCY(TP) | 31 | 0.34*2C | 7 | 0.25 | 515.8 | 19.7 |
| LIYCY(TP) | 32 | 0.34*2C | 7 | 0.25 | 527.1 | 19.7 |
| LIYCY(TP) | 33 | 0.34*2C | 7 | 0.25 | 538.3 | 19.7 |
| LIYCY(TP) | 34 | 0.34*2C | 7 | 0.25 | 556 | 20.3 |
| LIYCY(TP) | 35 | 0.34*2C | 7 | 0.25 | 567.2 | 20.3 |
| LIYCY(TP) | 36 | 0.34*2C | 7 | 0.25 | 578.4 | 20.3 |
