| Tên thương hiệu: | ECHU or OEM |
| Số mô hình: | UL2501 |
| MOQ: | 300m |
| giá bán: | USD0.317 -3.259/M |
| Điều khoản thanh toán: | T/T, Western Union, L/C |
| Khả năng cung cấp: | 10000 km/tuần |
UL high flexible mobile cable
Application:

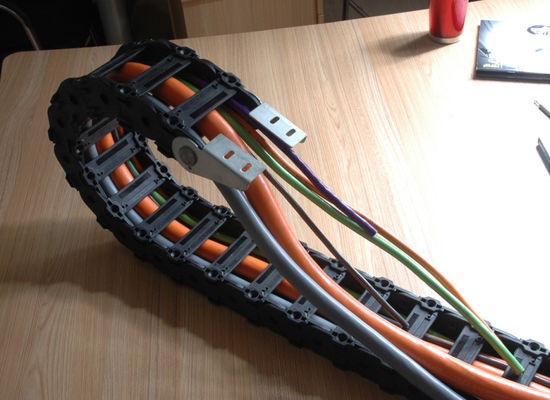

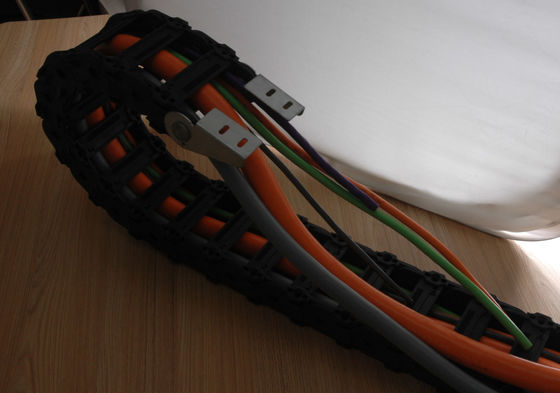

Robots,towing chains,mobile devices
◆Properties:
Waterproofing;oil resistance;coolresistance;abra- sion resistance;flame resistance;anti-ultraviolet. Bending for life:above 10000000times
◆ Structure:

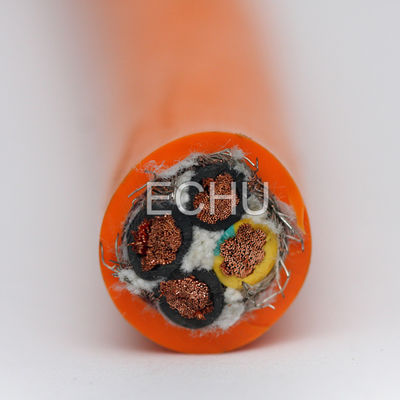

Conductor:Fine strands of oxygen-free copper wire Insulation:special PVC

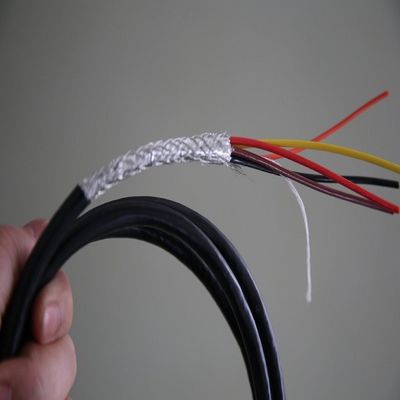

Shielding:tinnedcopper brainded shielding Sheath:special PVC
Black grey orange
Related voltage:<0.5mm²:300/300V
≥0.5mm²:300/500V Test voltage:2000V
The working temperature:
fixed instalation:-15℃~+105℃ Moved installation:-5℃~+105℃ Minimun bending radius:
fixed instalation:5×outer diameter Moved installation:
When travel<10m,bending radius of 8×d When travel≥10m,bending radius of 10×d
|
Part-No |
Specification |
(kg/km) Weight |
(mm) External Diameter |
| 2501 | 18AWG*2C | 98 | 9.1 |
| 2501 | 18AWG*3C | 117 | 9.6 |
| 2501 | 18AWG*4C | 143 | 10.5 |
| 2501 | 18AWG*6C | 198 | 12.4 |
| 2501 | 18AWG*8C | 262 | 14.3 |
| 2501 | 18AWG*10C | 331 | 16.2 |
| 2501 | 18AWG*12C | 407 | 18.2 |
| 2501 | 18AWG*16C | 435 | 17.8 |
| 2501 | 18AWG*20C | 531 | 19.7 |
| 2501 | 18AWG*2C | 118 | 9.8 |
| 2501 | 18AWG*3C | 146 | 10.5 |
| 2501 | 18AWG*4C | 180 | 11.3 |
| 2501 | 18AWG*6C | 250 | 13.3 |
| 2501 | 18AWG*8C | 340 | 15.6 |
| 2501 | 18AWG*10C | 421 | 17.8 |
| 2501 | 18AWG*12C | 518 | 20 |
| 2501 | 18AWG*16C | 560 | 19.5 |
| 2501 | 18AWG*20C | 692 | 21.6 |
|
Part-No |
Specification |
(kg/km) Weight |
(mm) External Diameter |
| 2501 | 14AWG*2C | 149 | 10.7 |
| 2501 | 14AWG*3C | 181 | 11.3 |
| 2501 | 14AWG*4C | 227 | 12,4 |
| 2501 | 14AWG*6C | 321 | 14.6 |
| 2501 | 14AWG*8C | 434 | 17.2 |
| 2501 | 14AWG*10C | 551 | 19.6 |
| 2501 | 14AWG*12C | 675 | 22 |
| 2501 | 14AWG*16C | 741 | 21.4 |
| 2501 | 14AWG*20C | 911 | 23.7 |
| 2501 | 12AWG*2C | 195 | 11.8 |
| 2501 | 12AWG*3C | 248 | 12.6 |
| 2501 | 12AWG*4C | 310 | 13.9 |
| 2501 | 12AWG*5C | 368 | 14.5 |
| 2501 | 12AWG*6C | 442 | 16.4 |
| 2501 | 12AWG*7C | 519 | 17.9 |
| 2501 | 10AWG*2C | 288 | 14.2 |
| 2501 | 10AWG*3C | 362 | 15 |
| 2501 | 0AWG*4 | 458 | 16.5 |
