| Tên thương hiệu: | ECHU or OEM |
| Số mô hình: | UL2464 |
| MOQ: | 300m |
| giá bán: | USD0.317 -3.258/M |
| Điều khoản thanh toán: | T/T, Western Union, L/C |
| Khả năng cung cấp: | 10000 km/tuần |
UL Euramerican specification cable
◆Application:

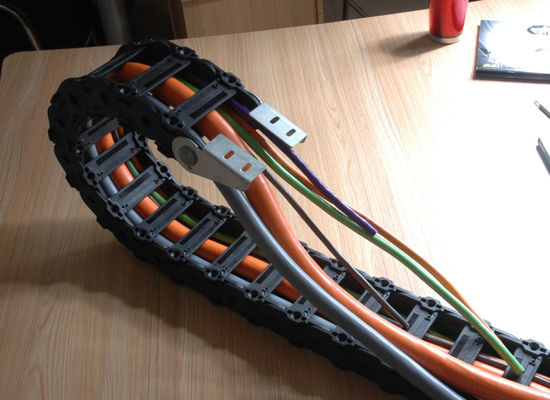

Robots,towing chains,mobile devices
◆Properties:
Waterproofing;oil resistance;cool resistance;abra- sion resistance;fame resistance;anti-uttraviolet.

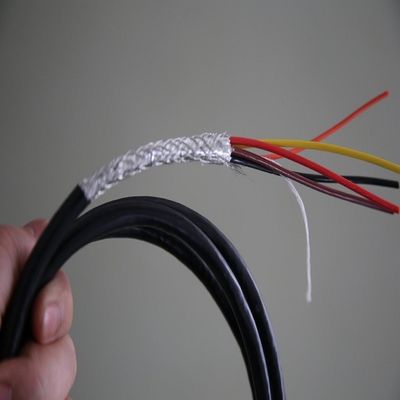

◆ Structure:
Conductor:Fine strands of oxygen-free copper wire Insulation:special PVC
Shielding:tinned copper braindedshielding
Dentity:above 80% Sheath:special PVC
(colors can be determined according to customer requirements).
Related voltage:300V
Test voltage:2000V
The working temperature:
fixed installation:-15℃~+80℃ Moved installation:-5℃~+80℃ Minimun bending radius:
fixed installation:5×outer diameter Moved installation:
When travel<10m,bending radius of 8×d When travel≥10m,bending radius of 10×d
Part No |
Specification | (kg/km) Weight | (mm) External Diameter |
| 2464 | 24AWG*2C | 44 | 5.8 |
| 2464 | 4AWG*3C | 47 | 6.0 |
| 2464 | 24AWG*6C | 72 | 7.3 |
| 2464 | 24AWG*8C | 90 | 8.2 |
| 2464 | 24AWG*10C | 102 | 8.8 |
| 2464 | 24AWG*16C | 139 | 10.0 |
| 2464 | 24AWG*20C | 165 | 10.9 |
| 2464 | 22AWG*2C | 49 | 6.1 |
| 2464 | 22AWG*3C | 54 | 6.3 |
| 2464 | 22AWG*6C | 84 | 7,7 |
| 2464 | 22AWG*8C | 107 | 8.8 |
| 2464 | 22AWG*12C | 137 | 9.8 |
| 2464 | 22AWG*16C | 168 | 10.7 |
| 2464 | 22AWG*20C | 202 | 11.7 |
| 2464 | 20AWG*2C | 56 | 6.4 |
| 2464 | 20AWG*3C | 66 | 6.7 |
| 2464 | 20AWG*6C | 89 | 7.7 |
| 2464 | 20AWG*8C | 130 | 9.5 |
| 2464 | 20AWG*12C | 172 | 10.6 |
| 2464 | 20AWG*16C | 212 | 11.6 |
| 2464 | 20AWG*20C | 261 | 12.8 |
| 2464 | 24AWG*2P | 65 | 7.0 |
| 2464 | 24AWG*3P | 80 | 7.9 |
| 2464 | 24AWG*4P | 94 | 8.5 |
Part No |
Specification | (kg/km) Weight | (mm) FxtermalDiameter |
| 2464 | 24AWG*6P | 125 | 10.0 |
| 2464 | 24AWG*10P | 170 | 11.6 |
| 2464 | 24AWG*12P | 205 | 12.9 |
| 2464 | 24AWG*16P | 253 | 14.2 |
| 2464 | 24AWG*20P | 346 | 17.5 |
| 2464 | 20AWG*2P | 90 | 8.0 |
| 2464 | 20AWG*3P | 112 | 9.0 |
| 2464 | 20AWG*4P | 139 | 9.9 |
| 2464 | 20AWG*6P | 185 | 11.6 |
| 2464 | 20AWG*10P | 267 | 13.6 |
| 2464 | 20AWG*12P | 347 | 16.1 |
| 2464 | 20AWG*16P | 431 | 17.7 |
| 2464 | 20AWG*20P | 529 | 20.5 |
| 2464 | 18AWG*2C | 65 | 7.0 |
| 2464 | 18AWG*3C | 80 | 7.3 |
| 2464 | 18AWG*4C | 95 | 7.8 |
| 2464 | 18AWG*6C | 130 | 9.1 |
| 2464 | 18AWG*10C | 195 | 11.3 |
| 2464 | 18AWG*20C | 350 | 14.2 |
| 2464 | 18AWG*30C | 520 | 17.6 |
| 2464 | 16AWG*2C | 85 | 7.6 |
| 2464 | 16AWG*3C | 105 | 8.0 |
| 2464 | 16AWG*4C | 125 | 8.6 |
| 2464 | 16AWG*6C | 175 | 10.2 |
