| Tên thương hiệu: | ECHU |
| Số mô hình: | RVV-NBR-PUR |
| MOQ: | 300m |
| giá bán: | USD1.2-US3.16/M |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 10000KM/ngày |
Applications:
as connecting and control cable for lift or crane, it is also used for various kinds of electric installation in dry or wet
Indoor as well as outdoor.
Properties:
the PUR outer sheath makes the cable waterproofing, oil resistance, cool resistance, abrasion resistance, Flame resistance, anti-ultraviolet.

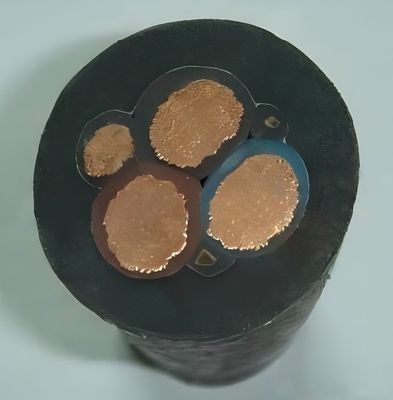

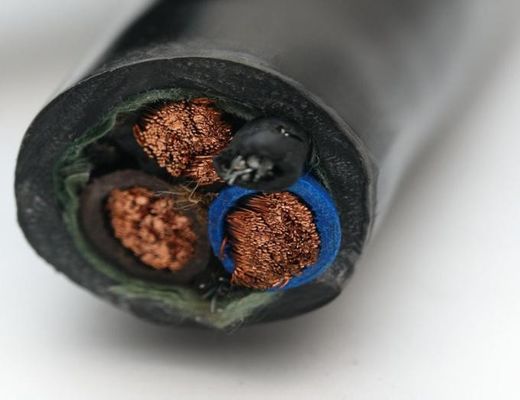

Structure:
Conductor:superfine copper strands acc. To VDE 0295, class 5
Insulation: Butadiene-acrylonitrile rubber (NBR).
Jacket: Butadiene-acrylonitrile rubber (NBR).
Colour: various colour cores with number acc. to JISC3306 or with green/yellow.
Inner liner: non-woven fabric wrapping to release impact
Outer sheath: PUR outer sheath.(waterproofing, oil resistance, cool resistance, abrasion resistance, Flame resistance, anti-ultraviolet).
Uted insulated cable rope among cores functions as tensile resistance
the outer sheath is flame retardant and self-extinguishing
(acc. to VDE 0482, part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1).
Technical data
Rated voltage:450/750V
Test voltage: 2500V
Temperature range:
fixed installation: -35 to +70
flexible application: -20 to +70
Minimum bending radius: 10X outer diameter
For this type, Normally 3-4 cores, cross section normally 1.5-10mm2
